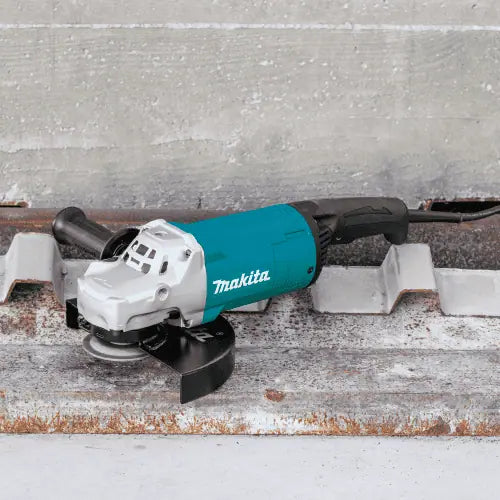

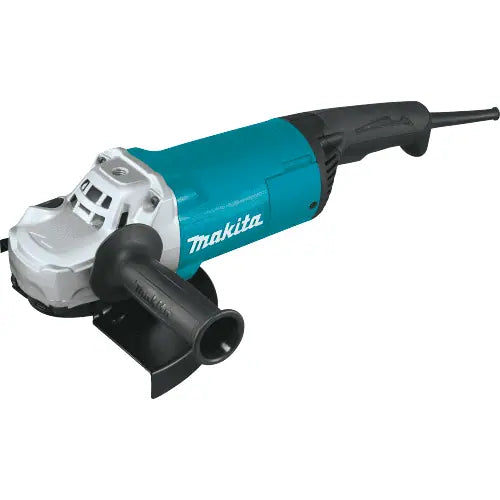

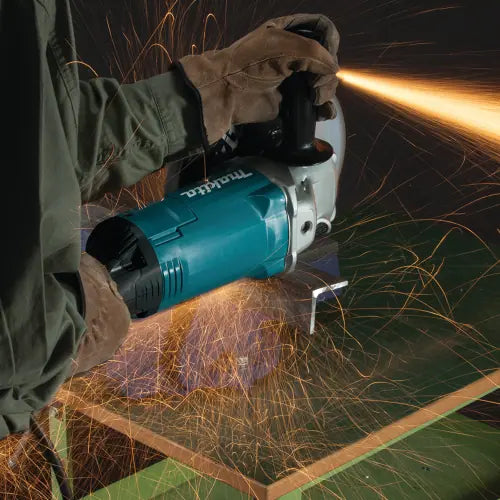

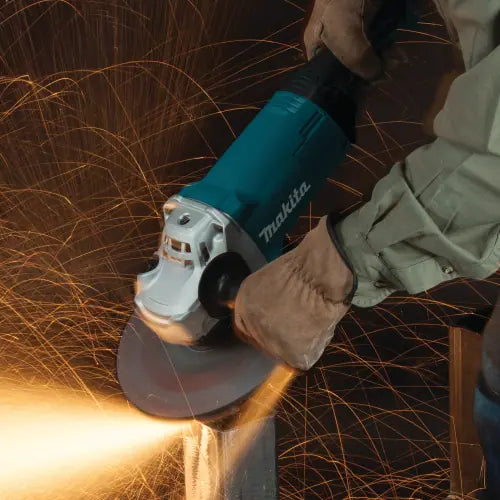

Makita 9" Angle Grinder with Lock-On Switch

Features

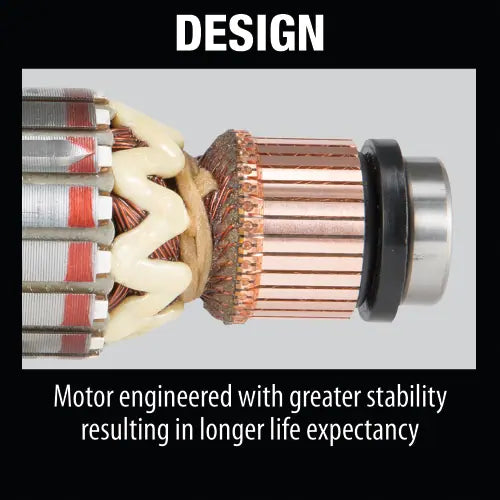

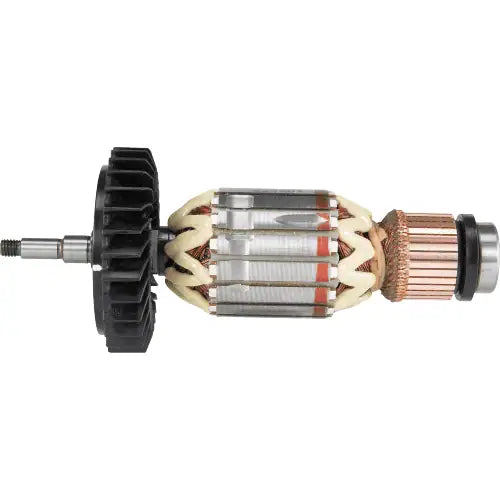

• Redesigned motor with greater armature stability and larger commutator bars for 3 times longer life compared to previous model
• Zig-zag epoxy on both sides of the armature coil and a powder-coated field for added protection from dust and debris for longer motor life

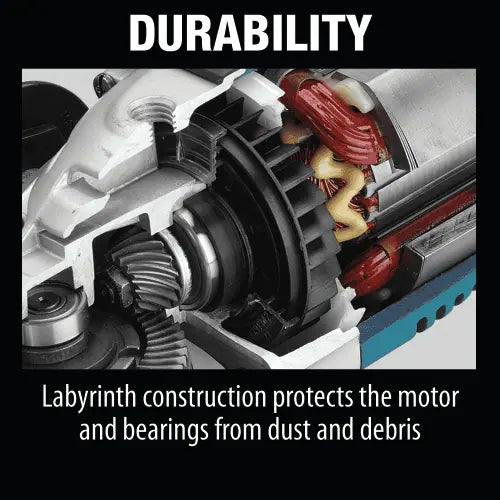

• Labyrinth construction seals and protects the motor and bearings from dust and debris for longer tool life
• Spiral bevel gears for smoother rotations and a more efficient transfer of energy
• Rear handle trigger switch with lock-off feature that requires two actions to start the grinder
• Aluminum gear housing provides superior gear alignment and smoother transmission for increased durability
• Side handle installs in three locations for operator comfort in various applications

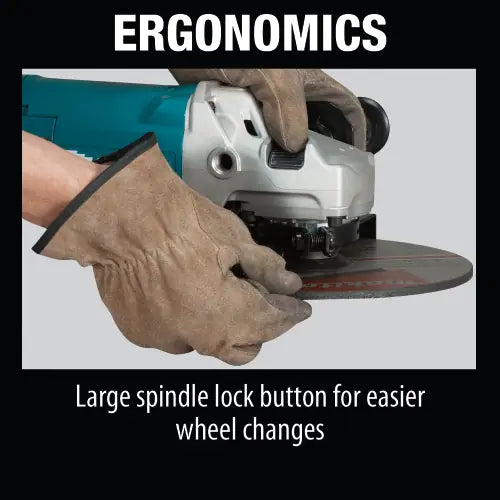

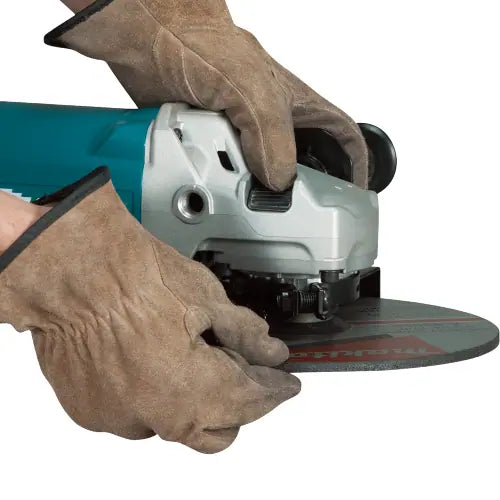

• Large spindle lock button for easier wheel changes while wearing gloves
• Brush spiral spring allows for a 30% larger brush and increased air-flow compared to previous model
• Automatic brush cut-off protects motor from damage for longer tool life

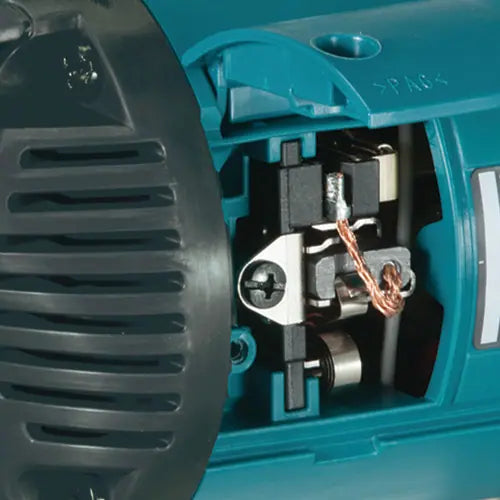

• Brush door provides easy access to brushes for convenient replacement; protects serial number identification label
• Rubberized back handle for increased operator comfort
• Compact design at 17-3/4" long and weighs 12.1 lbs. for added comfort
• Includes 9" grinding guard and lock-nut wrench

Includes

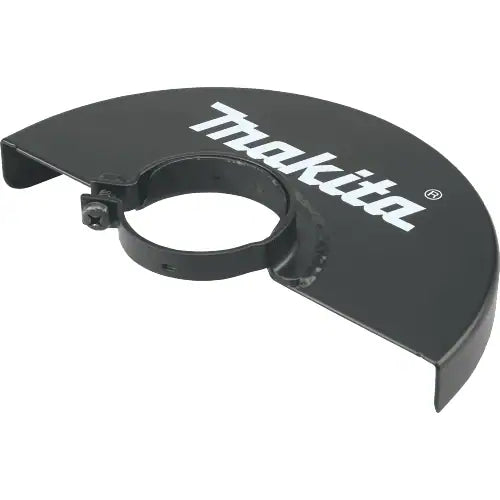

• (1) 9" Wheel Guard (122938-0)
• (1) Lock Nut (224486-6)
• (1) Lock Nut Wrench (782412-6)
• (1) Inner Flange (224317-9)
• (1) Side Handle (143486-6)

Specifications

• Wheel Diameter: 9"
• AMPS: 15
• No Load Speed: 6,600 RPM
• Spindle Type: 5/8" - 11 UNC
• Lock-On Switch: Yes
• Lock-Off Switch: Yes
• Switch Type: Rear trigger handle
• Overall Length: 17-3/4"
• Net Weight: 12.1 lbs.
• Variable speed dial: No
• Power Type: Corded
• Bind-Up Control: No
• Shipping Weight: 15.57 lbs.
