DeWalt SCREW-BOLT+™ 3/8" x 4" Galvanized Hex Washer Head Screw Anchor - 50 Qty

The Screw-Bolt+ anchor is a one piece, heavy duty screw anchor with a finished hex head or flat head (countersunk). Suitable base materials include normal-weight concrete, sand-lightweight concrete, concrete over steel deck, concrete masonry and solid clay brick. It is simple to install, easy to identify and fully removable. The patented thread design, designed for use with standard ANSI drill bits, reduces installation torque and enhances productivity. The steel threads along the anchor body tap into the hole during installation to provide keyed engagement and allow for reduced edge and spacing distances. The Screw-Bolt+ is available as bright zinc-plated or mechanically galvanized plating.

Features

• Designed for standard ANSI tolerance drill bits
• Patented thread design offers toughened threads for tapping high strength concrete
• Low installation torque in concrete and masonry
• Universal product for concrete and grouted/solid masonry
• Ratchet teeth on underside of hex washer head lock against the fixture
• Can be installed closer to a free edge than traditional expansion anchors
• Fully removable and reinstallable in same hole

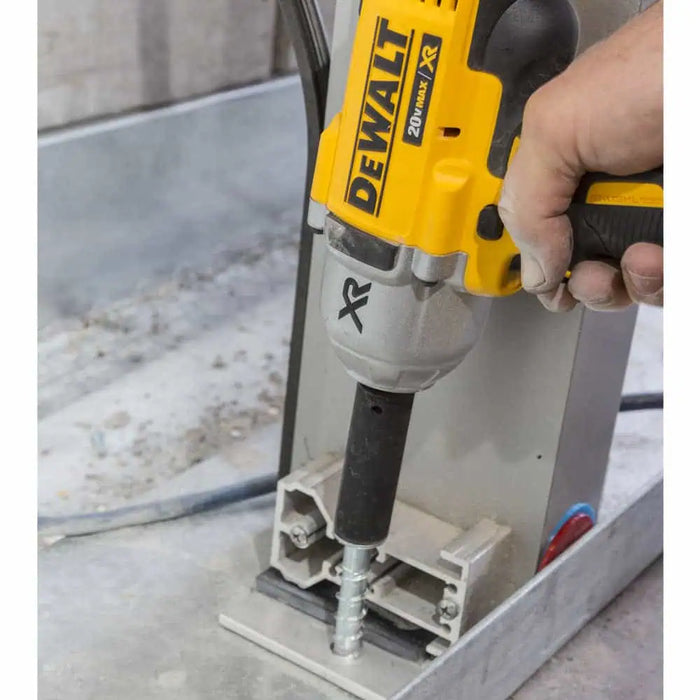

• Fast installation with powered impact wrench, but can also be installed manually
• Diameter, length and identifying marking stamped on head of each anchor
• One-piece, finished head design
• Universal product for concrete and grouted/solid masonry

Applications

• Racking, shelving and material handling
• Support ledgers and sill plate attachments
• Barriers, guards and temporary supports
• Glazing and window attachments
• Retrofits, repairs and maintenance
• Fencing, railing and stair stringers
• Cracked and un cracked concrete
• Seismic and wind loading (SDC A - F)

Specifications

• Type: Screw Anchor
• Anchor Materials: Carbon steel
• Finish: Galvanized
• Anchor Size: 3/8" X 4"
• Thread Length: 2"
• Quantity: 50
• Suitable Base Materials: Normal-weight concrete, Lightweight concrete, concrete over steel deck, Grouted concrete masonry (CMU), brick masonry
• Approvals & Listings: (ICC-ES), ESR-3889, (ICC-ES), ESR-4042, Code Compliant with the International Building Code/International Residential Code: 2021 IBC/IRC, 2018 IBC/IRC, 2015 IBC/IRC, and 2012 IBC/IRC, Tested in accordance with ACI 355.2, ASTM E488 and ICC-ES AC193 for use in structural applications in concrete under the design provisions of ACI 318, Evaluated and qualified by an accredited independent testing laboratory for recognition in cracked and un cracked concrete including seismic and wind loading, Evaluated and qualified by an accredited independent testing laboratory for sensitivity and reliability against brittle failure, e.g. hydrogen embrittlement
• Prop 65 Generic Warning: No
