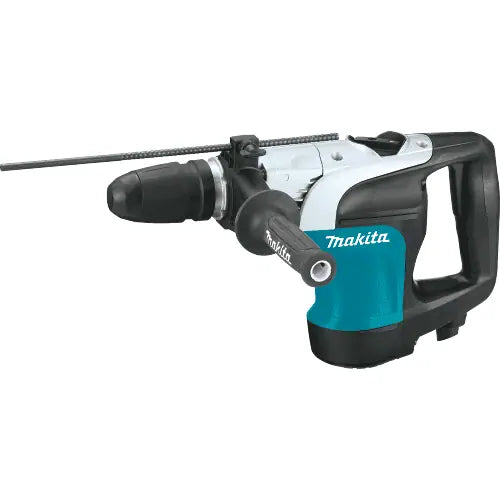

Makita 1-9/16" SDS-MAX Rotary Hammer

Features

• Powerful 10 AMP motor delivers 4.6 ft.lbs. of impact energy to handle the most demanding applications
• 2-mode operation for "Hammering Only" or "Hammering with Rotation"
• Torque limiting clutch engineered to prevent gear damage by automatically disengaging gears if the bit binds
• Rubberized ergonomic soft grip provides more comfort
• No hammering when idling" functions helps increase tool life
• One-touch sliding chuck for quick bit changes

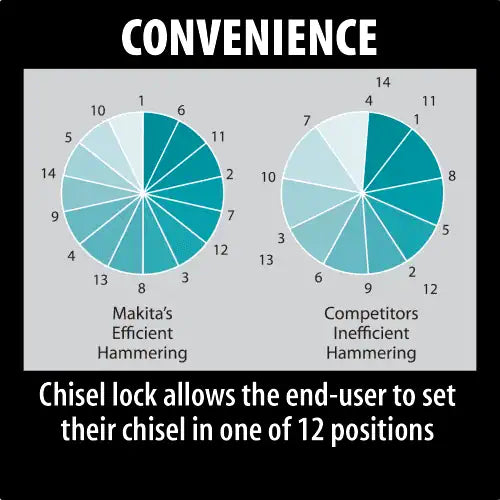

• 12 bit angle settings allow the bit to be set at different positions for operating convenience
• Automatic brush cut-off protects commutator from damage for longer tool life
• Makita Motor Advantage engineered with field core interlocking steel laminations, dual ball bearing armature and more copper commutator bars, increasing energy transfer efficiency for more power and longer tool life

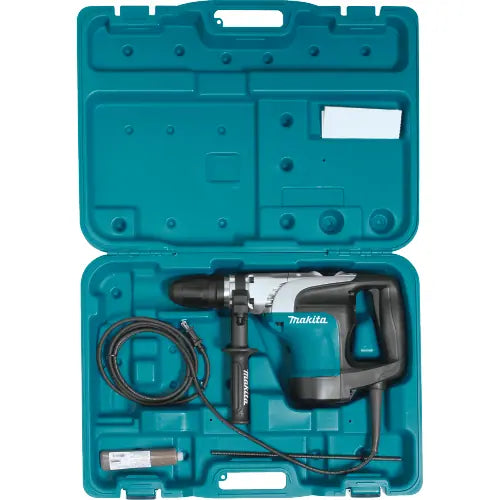

Includes

• (1) Depth Gauge (321248-4)
• (1) Hammer Bit Grease (194683-7)

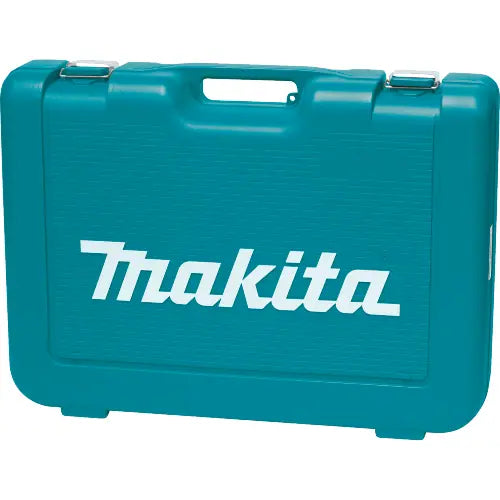

• (1) Plastic Tool Case (158275-6)
• (1) Side Handle

Specifications

• AMPS: 10
• Max. Capacity (concrete drilling): 1-9/16"
• Optimum Range (concrete drilling): 1/2" - 1"
• Max. Capacity (concrete drilling w/ core bit): 4-1/8"
• Impact Energy (ft.lbs.): 4.6
• Impact Energy (Joules): 6.2 J
• Blows Per Minute: 2,500 BPM
• No Load Speed: 680 RPM
• Vibration Control: No
• Vibration (m/s²): 17.5
• Overall Length: 18"
• Cord Length (ft): 9.8'
• Net Weight: 14.6 lbs.
• Bit Type: Accepts SDS-MAX
• Power Type: Corded
• Bind-Up Control: No
• Shipping Weight: 28.11 lbs.
