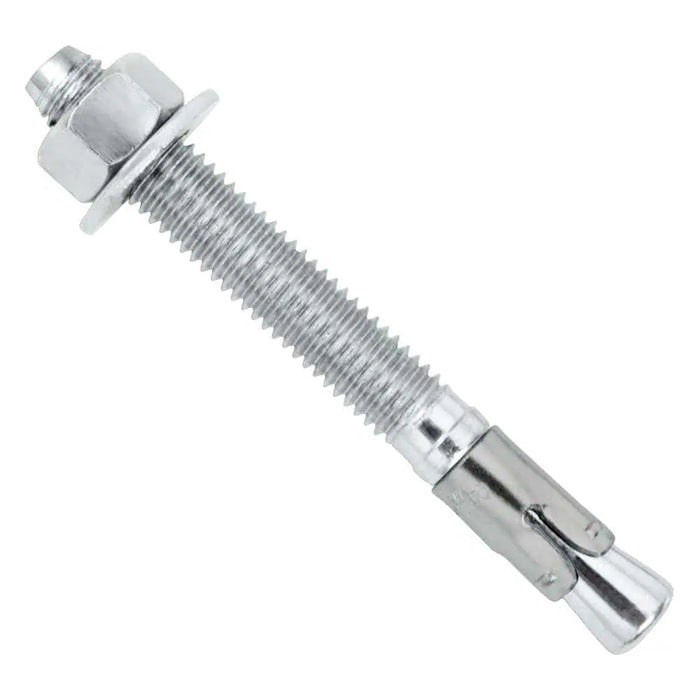

DeWalt POWER-STUD®+ SD2 5/8" x 7" SS Wedge Expansion Anchor - 25 Qty

The Power-Stud+ SD2 anchor is a fully threaded, torque-controlled, wedge expansion anchor which is designed for consistent performance in cracked and uncracked concrete. Suitable base materials include normal-weight concrete, lightweight concrete and concrete over steel deck. The anchor is manufactured with a zinc plated carbon steel body and stainless steel expansion clip for premium performance.

Features

• Consistent performance in high and low strength concrete
• Nominal drill bit size is the same as the anchor diameter
• Anchor can be installed through standard fixture holes
• Length ID code and identifying marking stamped on head of each anchor
• Anchor design allows for follow-up expansion after setting under tensile loading

Applications

• Structural connections, i.e., beam and column anchorage
• Interior applications/low level corrosion environment
• Tension zone applications, i.e., safety-related attachments
• Seismic and wind loading (SDC A - F)
• Utility supports, e.g. pipe, strut, trapeze, bracing
• Equipment anchorage, angles, brackets and ledgers
• Barriers, guards and fencing
• Mezzanines, racking and railing

Specifications

• Anchor Materials: Carbon Steel Body/Stainless Steel Expansion Clip
• Thread Version: UNC Threaded Stud
• Finish: Zinc Plated
• Anchor Size: 5/8" X 7"
• Thread Length: 5-1/8"
• Quantity: 25
• Suitable Base Materials: Normal-weight concrete, Lightweight concrete, Concrete over steel deck, Grouted-filled concrete masonry (CMU)
• Approvals & Listings: (ICC-ES), ESR-2502, Code Compliant with the 2021 IBC/IRC, 2018 IBC/IRC, 2015 IBC/IRC, and 2012 IBC/IRC, Tested in accordance with ACI 355.2/ASTM E488 and ICC-ES AC193 for use in structural concrete under the design provisions of ACI 318 (-19 or -14) Chapter 17 or ACI 318 Appendix D, Evaluated and qualified by an accredited independent testing laboratory for recognition in cracked and un cracked concrete including seismic and wind loading, City of Los Angeles, LABC and LARC Supplement (within ESR-2502), Florida Building Code, FBC Supplement including HVHZ (within ESR-2502), (UL Listed) – File No. EX1289 and VFXT7.EX1289, FM Approvals (Factory Mutual)
