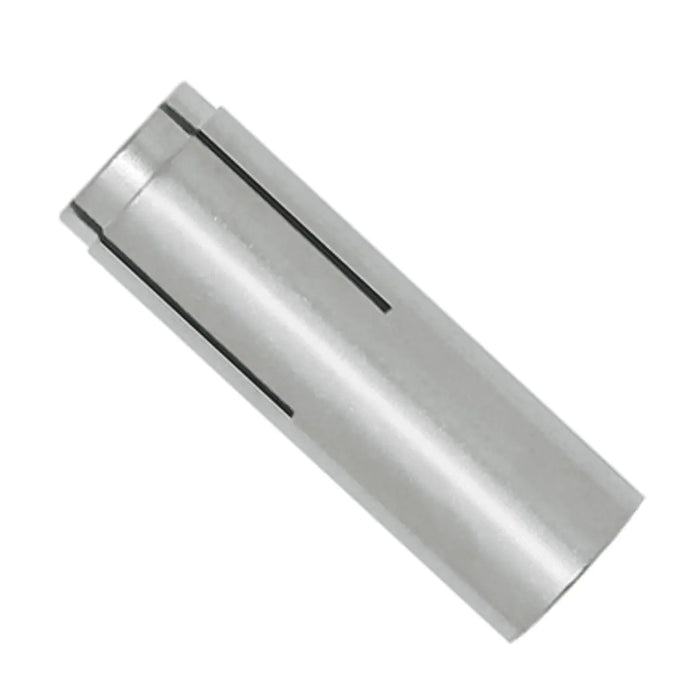

DeWalt STEEL DROPIN 5/8" x 2-1/2" 316SS Internally Threaded Expansion Anchor - 25 Qty

The Steel Dropin is an all-steel, machine bolt anchor available in carbon steel and two types of stainless steel. It can be used in solid concrete, including lightweight concrete and concrete-filled steel deck members. The anchors can also be considered for hard stone and solid block base materials. A coil thread version for forming applications is also available.

Features

• Internally threaded anchor for easy bolt removability and service work
• Flanged (lipped) version installs flush for easy inspection and standard embedment
• Smooth wall dropin can be installed flush mounted or below the base material surface
• Optionally available with a knurled body

Applications

• Suspending Conduit
• Fire Sprinkler Supports
• Cable Trays and Strut
• Concrete Formwork
• Pipe Supports
• Suspended Lighting

Specifications

• Anchor Materials: 316 Stainless Steel
• Thread: UNC Coarse Thread
• Finish: Plain
• Anchor Size: 5/8"
• Anchor Length Overall: 2-1/2"
• Drill Diameter: 7/8"
• Internal Thread Depth: 1-3/16"
• Minimum Embedment Depth: 2-1/2"
• Quantity: 25
• Suitable Base Materials: Normal-weight concrete, Lightweight concrete
• Approvals & Listings: Tested in accordance with ASTM E488 in uncracked concrete, (UL Listed) – File No. EX1289 and VFXT7.EX1289, FM Approvals (Factory Mutual), Federal GSA Specification – meets descriptive
