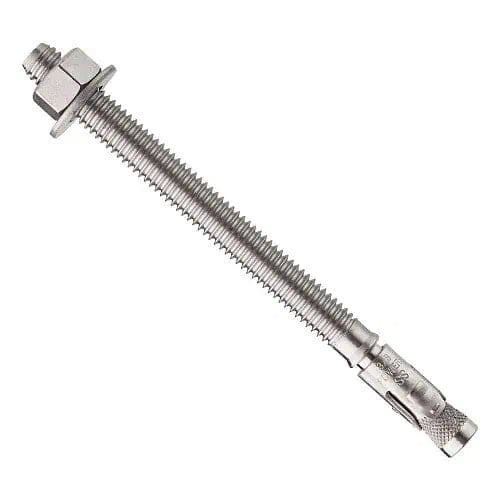

DeWalt POWER-STUD‚®+ SD6 1/4" x 2-1/4" SS Wedge Expansion Anchors - 100 Qty
Package Quantity: 100
100% Satisfaction Guaranteed
We'll exchange or refund any product that doesn't meet your expectations.
The Power-Stud+ SD4 and Power-Stud+ SD6 anchors are fully threaded, torque-controlled, stainless steel wedge expansion anchors which are designed for consistent performance in cracked and uncracked concrete. Suitable base materials include normal-weight, lightweight concrete, and grouted concrete masonry (CMU). The anchor is manufactured with a stainless steel body and expansion clip. Nut and washer are included.
Features
- Knurled mandrel design provides consistent performance in cracked concrete and helps prevent galling during service life.
- Nominal drill bit size is the same as the anchor diameter
- Anchor can be installed through standard clearance fixture holes
- Length ID code and identifying marking stamped on head of each anchor
- Mandrel design helps prevent galling during service life
- Anchor design allows for follow-up expansion after setting under tensile loading
- Domestically manufactured by request (see ordering information)
Applications
- Structural connections, i.e., beam and column anchorage
- Tension zone applications, i.e., safety-related attachments
- Seismic and wind loading (SDC A - F)
- Utility supports and bracing attachments
- Equipment anchorage, angles, brackets and ledgers
- Barriers, guards and fencing
- Mezzanines, racking and railing
Specifications
- Type: Wedge Expansion Anchors
- Anchor Materials: Stainless steel
- Anchor Size: 1/4" X 2-1/4"
- Thread Length: 1-1/4"
- Quantity: 10
- Thread Version: UNC Threaded Stud
- Suitable Base Materials: Normal-weight concrete, Lightweight concrete, Grouted concrete masonry (CMU)
- Approvals & Listings: (ICC-ES), ESR-2502, Code compliant with the 2021 IBC/IRC, 2018 IBC/IRC, 2015 IBC/IRC, and 2012 IBC/IRC, Tested in accordance with ACI 355.2/ASTM E488 and ICC-ES AC193 for use in structural concrete under the design provisions of ACI 318 (-19 or -14) Chapter 17 or ACI 318-Appendix D, Evaluated and qualified by an accredited independent testing laboratory for recognition in cracked and un cracked concrete including seismic and wind loading, City of Los Angeles, LABC and LARC Supplement (within ESR-2502), Florida Building Code, FBC Supplement including HVHZ (within ESR-2502)
