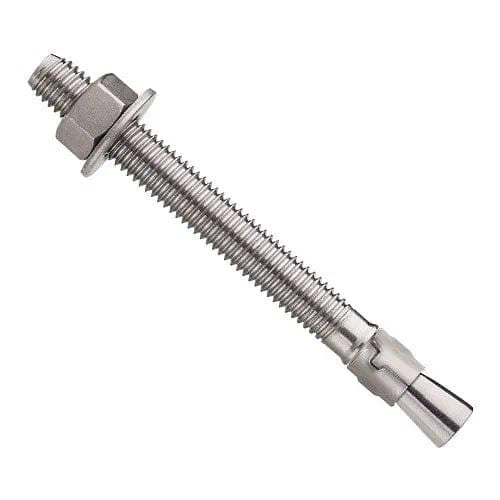

DeWalt POWER-STUD® 7/8" x 8" 304SS Wedge Expansion Anchor - 10 Qty
Package Quantity: 10
100% Satisfaction Guaranteed
We'll exchange or refund any product that doesn't meet your expectations.
The Power-Stud anchor, is a fully threaded, torque-controlled, wedge expansion anchor. It is available in a threaded version suitable for applications in solid concrete and grout-filled concrete masonry.
Features
- Fully threaded, medium duty all-purpose anchor
- Length ID stamped on each threaded anchor
- Anchors can be installed through the fixture for hole spotting not required
- Chamfered impact section prevents damage to threads
- Clip design prevents spinning during installation
- Nominal drill bit diameter same as anchor diameter
Specifications
- Lighting standards and base plates
- Sills and support ledgers
- Retrofit projects and machinery anchorage
- Food and beverage facilities
- Water treatment plants and marine applications
Specifications
- Anchor Size: 7/8" x 8"
- Anchor Diameter: 7/8"
- Anchor Length: 8"
- Thread Length: 4-3/4"
- Anchor Material: 304 Stainless Steel
- Head Style: Threaded Stud (UNC)
- Piece Count: 10
- Suitable Base Materials: Normal-weight Concrete, Lightweight Concrete, Grouted Concrete Masonry (CMU)
Approvals & Listings
- Tested in accordance with ASTM E488
- Federal GSA Specification Meets the descriptive and proof load requirements of CID A-A-1923A, Type 4
