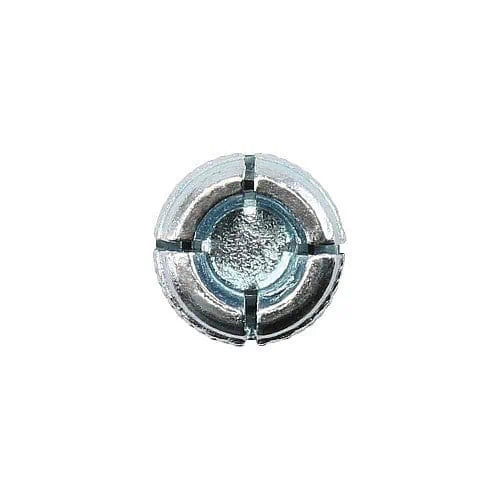

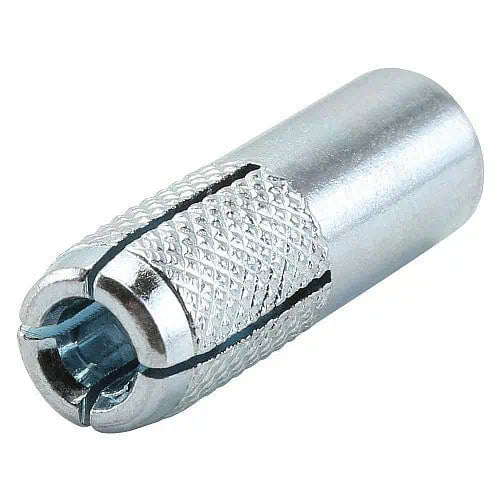

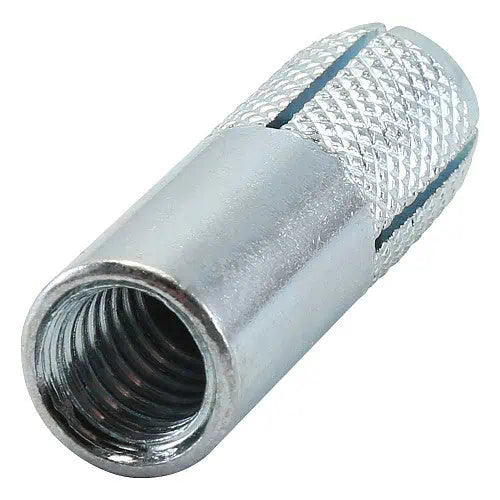

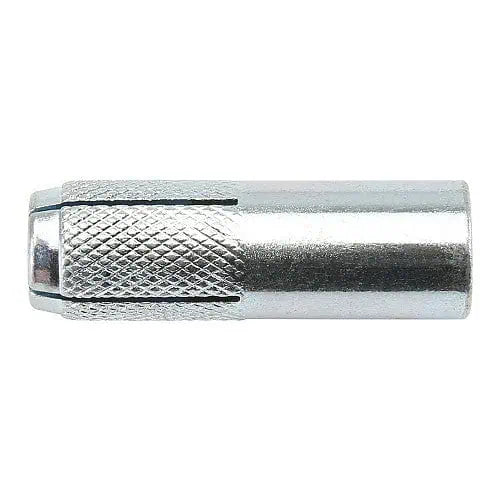

DeWalt STEEL DROPIN 3/8" Carbon Steel Knurled Wall Expansion Anchor - 50 Qty

The Steel Dropin is an all-steel, machine bolt anchor available in carbon steel and two types of stainless steel. It can be used in solid concrete, including lightweight concrete and concrete-filled steel deck members. The anchors can also be considered for hard stone and solid block base materials. A coil thread version for forming applications is also available.

Features

• Internally threaded anchor for easy bolt removability and service work
• Flanged (lipped) version installs flush for easy inspection and standard embedment
• Smooth wall dropin can be installed flush mounted or below the base material surface (Optionally available with a knurled body)
• Coil thread version accepts coil rod and typically used for concrete formwork applications

Applications

• Suspending Conduit
• Fire Sprinkler Supports
• Cable Trays and Strut
• Concrete Formwork
• Pipe Supports
• Suspended Lighting

Specifications

• Anchor Size: 3/8"
• Overall Length: 1-9/16"
• Outside Diameter: 1/2"
• Anchor Material: Zinc Plated Carbon Steel
• Piece Count: 50
• Suitable Base Materials: Normal-weight Concrete, Lightweight Concrete

Approvals & Listings

• Tested in accordance with ASTM E488 in uncracked concrete
• Underwriters Laboratory (UL Listed) – File No. EX1289 and VFXT7.EX1289, see listing for sizes
• FM Approvals (Factory Mutual) – see approval for sizes
• Federal GSA Specification – meets descriptive
