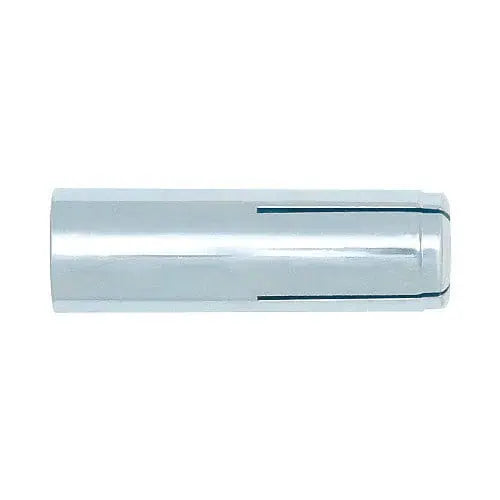

DeWalt STEEL DROPIN 3/4" Carbon Steel Coil Thread Expansion Anchor - 10 Qty

Availability:
In Stock
SKU POW06332
Original price $33.45 - Original price $33.45
Original price
$33.45
$33.45 - $33.45
Current price $33.45

Package Quantity: 10

100% Satisfaction Guaranteed

We'll exchange or refund any product that doesn't meet your expectations.

The Steel Dropin is an all-steel, machine bolt anchor available in carbon steel and two types of stainless steel. It can be used in solid concrete, including lightweight concrete and concrete-filled steel deck members. The anchors can also be considered for hard stone and solid block base materials. A coil thread version for forming applications is also available.

Features

  • Internally threaded anchor for easy bolt removability and service work
  • Flanged (lipped) version installs flush for easy inspection and standard embedment
  • Smooth wall dropin can be installed flush mounted or below the base material surface (Optionally available with a knurled body)
  • Coil thread version accepts coil rod and typically used for concrete formwork applications

Applications

  • Suspending Conduit
  • Fire Sprinkler Supports
  • Cable Trays and Strut
  • Concrete Formwork
  • Pipe Supports
  • Suspended Lighting

Specifications

  • Anchor Size: 3/4"
  • Overall Length: 3-3/16"
  • Outside Diameter: 1"
  • Anchor Material: Zinc Plated Carbon Steel
  • Piece Count: 10
  • Suitable Base Materials: Normal-weight Concrete, Lightweight Concrete

Approvals & Listings

  • Tested in accordance with ASTM E488 in uncracked concrete
  • Underwriters Laboratory (UL Listed) – File No. EX1289 and VFXT7.EX1289, see listing for sizes
  • FM Approvals (Factory Mutual) – see approval for sizes
  • Federal GSA Specification – meets descriptive
