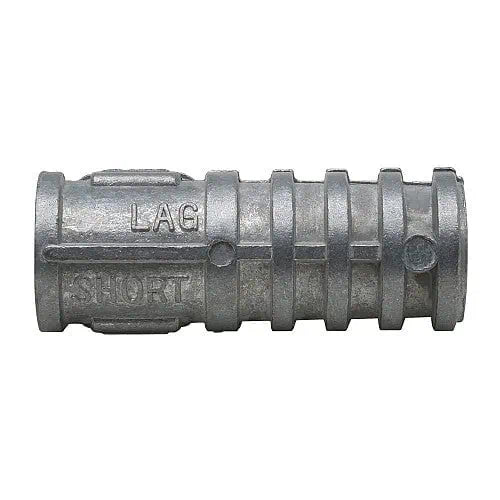

DeWalt 1/4" Short Lag Shield Anchor - 50 Qty

The Lag Shield is a screw style anchor designed for use with lag bolts. It is suitable for use in concrete and the mortar joints of block or brick walls. In harder masonry materials, short style Lag Shields are used to reduce drilling time. The long style version is used in soft or weak masonry to better develop strength. The Lag Shield is not recommended for overhead or life safety applications.

Features

• Ideal for use in masonry materials
• Internally threaded anchor for easy removability and service work

Applications

• Hard and soft base materials
• Shallow attachments
• Mortar joints
• Masonry anchorage

Specifications

• Size: 1/4" Short
• Drill Diameter: 1/2"
• Length: 1"
• Thread Length: 1/2"
• Thread Version: Lag Bolt
• Anchor Material: Zinc Alloy
• Piece Count: 50
• Suitable Base Material: Normal-weight concrete, Hollow concrete masonry (CMU), Brick masonry

Approvals & Listings

• Federal GSA Specification – Meets the descriptive and proof load requirements of CID A-A 1923A, Type 1
• Tested in accordance with ASTM E 488
