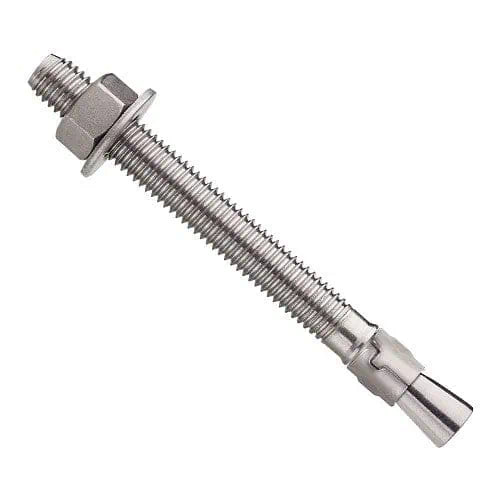

DeWalt POWER-STUD‚® 1/2" x 2-3/4" 316SS Wedge Expansion Anchor - 50 Qty

The Power-Stud anchor, is a fully threaded, torque-controlled, wedge expansion anchor. It is available in a threaded version suitable for applications in solid concrete and grout-filled concrete masonry. The threaded version is produced in 304 stainless steel and 316 stainless steel.

Features

• Fully threaded, medium duty all-purpose anchor
• Length ID stamped on each threaded anchor
• Anchors can be installed through the fixture for hole spotting not required
• Chamfered impact section prevents damage to threads
• Clip design prevents spinning during installation
• Nominal drill bit diameter same as anchor diameter

Applications

• Lighting Standards and Base Plates
• Sills and Support Ledgers
• Retrofit Projects and Machinery Anchorage
• Food and Beverage Facilities
• Water Treatment Plants and Marine Applications

Specifications

• Type: Wedge Expansion Anchor
• Finish: Plain
• Anchor Material: 316 Stainless Steel
• Anchor Diameter: 1/2"
• Anchor Length: 2-3/4"
• Thread Length: 1-3/8"
• Quantity: 50
• Head Styles: Threaded Stud (UNC)
• Suitable Base Materials: Normal-weight concrete, Lightweight concrete, Grouted concrete masonry (CMU)
• Approvals & Listings: Tested in accordance with ASTM E488, Federal GSA SpecificationMeets the descriptive and proof load requirements of CID A-A-1923A, Type 4
