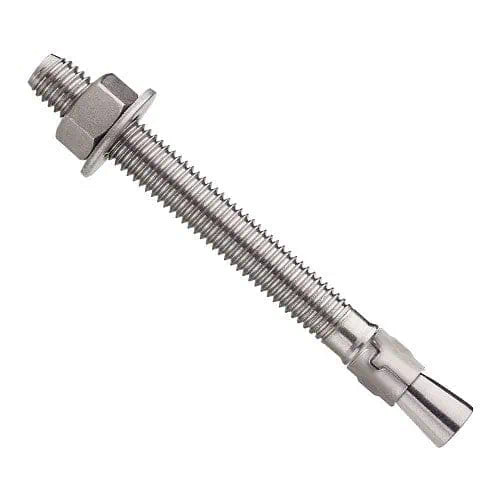

DeWalt POWER-STUD‚® 3/4" x 6-1/4" 304SS Wedge Expansion Anchor - 20 Qty

The Power-Stud anchor, is a fully threaded, torque-controlled, wedge expansion anchor. It is available in a threaded version suitable for applications in solid concrete and grout-filled concrete masonry. The threaded version is produced in 304 stainless steel

Features

• Fully threaded, medium duty all-purpose anchor
• Length ID stamped on each threaded anchor
• Anchors can be installed through the fixture for hole spotting not required
• Chamfered impact section prevents damage to threads
• Clip design prevents spinning during installation
• Nominal drill bit diameter same as anchor diameter

Applications

• Lighting standards and base plates
• Sills and support ledgers
• Retrofit projects and machinery anchorage
• Food and beverage facilities
• Water treatment plants and marine applications

Specifications

• Type: Wedge Expansion Anchor
• Finish: Plain
• Anchor Material: 304 Stainless Steel
• Head Styles: Threaded Stud (UNC)
• Anchor Diameter: 3/4"
• Anchor Length: 6-1/4"
• Thread Length: 4-3/8"
• Quantity: 20
• Suitable Base Materials: Normal-weight concrete, Lightweight concrete, Grouted concrete masonry (cmu)
• Approvals & Listings: Tested in accordance with ASTM E488, Federal GSA Specification Meets the descriptive and proof load requirements of CID A-A-1923A, Type 4
