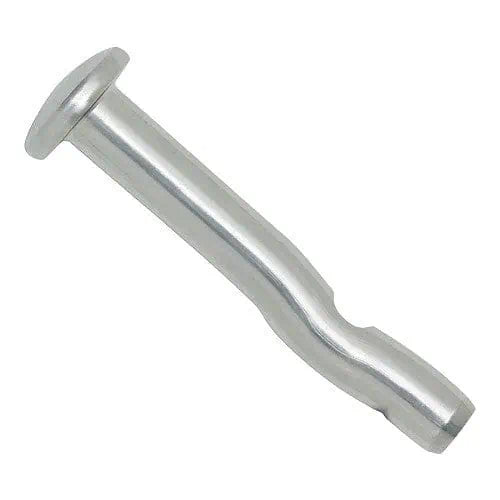

DeWalt SPIKE‚® 1/4" x 1-1/2" Carbon Steel Mushroom Head Pin Anchor, Tamperproof - 100 Qty

The Spike is a, one-piece, vibration resistant anchor for use in concrete, block or stone. Several head styles, including tamperproof versions, and anchor materials are available. The Spike anchor is formed with an “s” shaped configuration at the working end of the anchor to create an expansion mechanism. Since the anchor is pre-formed, there is no secondary tightening operation required which greatly reduces the overall cost of an anchor installation.

Features

• Pre-expanded anchor design allows for easy installation
• Mushroom and flat head Spike anchors are tamper-proof
• Forming Spike, which is removable, can be used for temporary installations
• Pipe and tie-wire Spike is a simple to install alternative to direct fastening (e.g. powder actuated)

Applications

• Tamperproof applications
• Cable trays and strut
• Available in multiple head styles
• Guards and barriers
• Pipe hanging
• Metal track attachments
• Concrete formwork
• Safety posts

Specifications

• Anchor Size: 1/4" x 1-1/2"
• Anchor Diameter: 1/4"
• Anchor Length: 1-1/2"
• Anchor Material: Carbon Steel
• Head Style: Mushroom Head
• Piece Count: 100
• Suitable Base Material: Normal-Weight Concrete, Lightweight Concrete, Grouted Concrete Masonry (CMU)
• Approvals: Tested in accordance with ASTM E488
