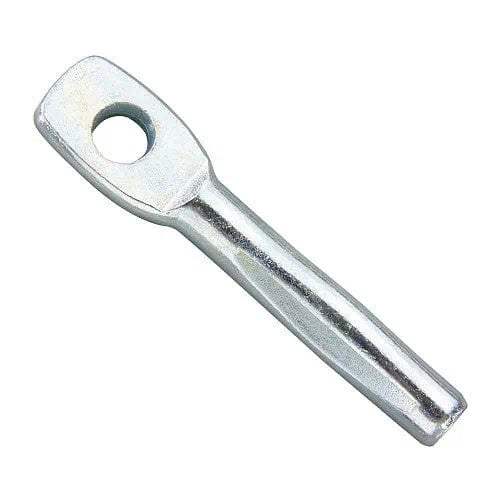

DeWalt 1/4" x 1-3/4" Tie-Wire Drive Pin Anchor - 100 Qty

The Drive is a one-piece, tamperproof, pre-formed anchor available in carbon steel for use in concrete. Tie-Wire Drive anchors are designed for suspended ceiling applications. The flat head (counter-sunk) style is particularly suited for wood-to-concrete anchoring. The round head style can be used for other applications requiring fast, permanent installations

Features

• Pre-expanded anchor design allows for easy installation
• Round And Flat Head Anchors Are Tamperproof

Specifications

• Anchor Size: 1/4" x 1-3/4"
• Anchor Diameter: 1/4"
• Head Height: 5/8"
• Anchor Length: 1-3/4"
• Drill Diameter: 1/4"
• Minimum Embedment Depth: 1-1/8"
• Eyelet Hole Diameter: 13/64"
• Head Style: Tie-Wire
• Anchor Material: Zinc Plated Carbon Steel
• Piece Count: 100
• Suitable Base Material: Normal-Weight Concrete
• Applications: Tamperproof, Suspended Ceilings
• Approvals: Tested in accordance with ASTM E488, UL Listed
