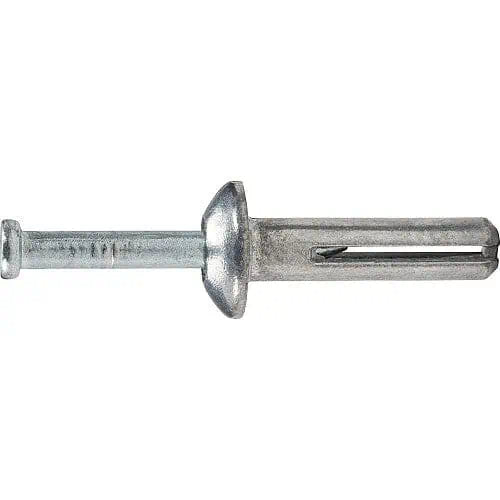

DeWalt ZAMAC NAILIN‚® 3/16" x 7/8" Mushroom Head Hammer Drive Nail Anchor - 1000 Qty

The Zamac Nailin is a nail drive anchor which has a body formed from Zamac alloy. Drive nails are available in carbon or stainless steel. The anchor can be used in concrete, block, brick or stone.A corrosion resistant Zamac alloy is used to form the anchor body with either a mushroom or flat head. The anchor can be used for light duty, tamperproof applications. The anchor is not recommend for overhead, life-safety or sustained tensile loading applications (see performance data section).

Features

• General purpose anchoring
• Installs in a variety of base materials

Applications

• Roof flashing
• Furring strips
• Screens and covers
• Brick ties and masonry anchorage
• Lightweight signage
• Downspouts
• Electrical fixtures
• Maintenance

Specifications

• Anchor Size: 3/16" x 7/8"
• Anchor Diameter: 3/16"
• Head Diameter: 13/32"
• Head Height: 7/64"
• Anchor Diameter Outside: 3/16"
• Usable Length: 7/8"
• Anchor Material: Zamac Alloy body with Carbon
• Piece Count: 1000
• Prop 65 Generic Warning: No
• Suitable Base Material: Normal-Weight Concrete, Concrete Masonry (CMU), Brick Masonry, Stone
• Approvals: Federal GSA Specification – Meets the proof load requirements of FF-S-325C, Group V, Type 2, Class 3, (superseded) and CID A-A 1925A, Type 1 (mushroom head) & Type 2 (flat head)
