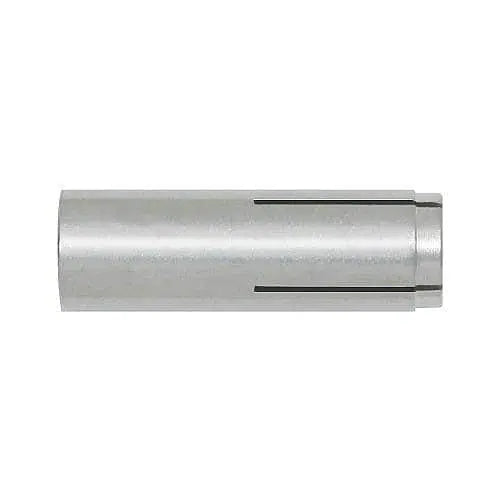

DeWalt STEEL DROPIN 3/8" x 1-9/16" 304SS Internally Threaded Expansion Anchor - 50 Qty

The Steel Dropin is an all-steel, machine bolt anchor available in carbon steel and two types of stainless steel. It can be used in solid concrete, including lightweight concrete and concrete-filled steel deck members. The anchors can also be considered for hard stone and solid block base materials. A coil thread version for forming applications is also available.

Features

• Internally threaded anchor for easy bolt removability and service work
• Flanged (lipped) version installs flush for easy inspection and standard embedment
• Smooth wall drop-in can be installed flush mounted or below the base material surface
• Optionally available with a knurled body
• Coil thread version accepts coil rod and typically used for concrete formwork applications

Applications

• Suspending Conduit
• Fire Sprinkler Supports
• Cable Trays and Strut
• Concrete Formwork
• Pipe Supports
• Suspended Lighting

Specifications

• Type: Expansion Anchor
• Anchor Size: 3/8"
• Anchor Length Overall: 1-9/16"
• Drill Diameter: 1/2"
• Internal Thread Depth: 5/8"
• Minimum Embedment Depth: 1-9/16"
• Quantity: 50
• Approvals & Listings: Tested in accordance with ASTM E488 in uncracked concrete, FM Approvals (Factory Mutual) – see approval for sizes, UL Listed, Federal GSA Specification – meets descriptive
• Suitable Base Materials: Normal-weight concrete, Lightweight concrete
